Efficient Compression for Event-Based Data in Neuromorphic Applications
  • Gregor Lenz, Fabrizio Ottati, Alexandre Marcireau
  • 2023, Feb 28 (Updated 2023, Oct 15)

Datasets grow larger in size

As neuromorphic algorithms tackle more complex tasks that are linked to bigger datasets, and event cameras mature to have higher spatial resolution, it is worth looking at how to encode that data efficiently when storing it on disk. To give you an example, Prophesee’s latest automotive object detection dataset is some 3.5 TB in size for under 40h of recordings with a single camera.

Event cameras record with fine-grained temporal resolution

In contrast to conventional cameras, event cameras output changes in illumination, which is already a form of compression. But the output data rate is still a lot higher cameras because of the microsecond temporal resolution that event cameras are able to record with. When streaming data, we get millions of tuples of microsecond timestamps, x/y coordinates and polarity indicators per second that look nothing like a frame but are a list of events:

#  time, x, y, polarity
[(18661,  762, 147, 1)
 (18669, 1161,  72, 1)
 (18679, 1073,  23, 0)
 (18688,  799, 304, 0)
 (18694,  234, 275, 1)]

File size vs reading speed trade-off

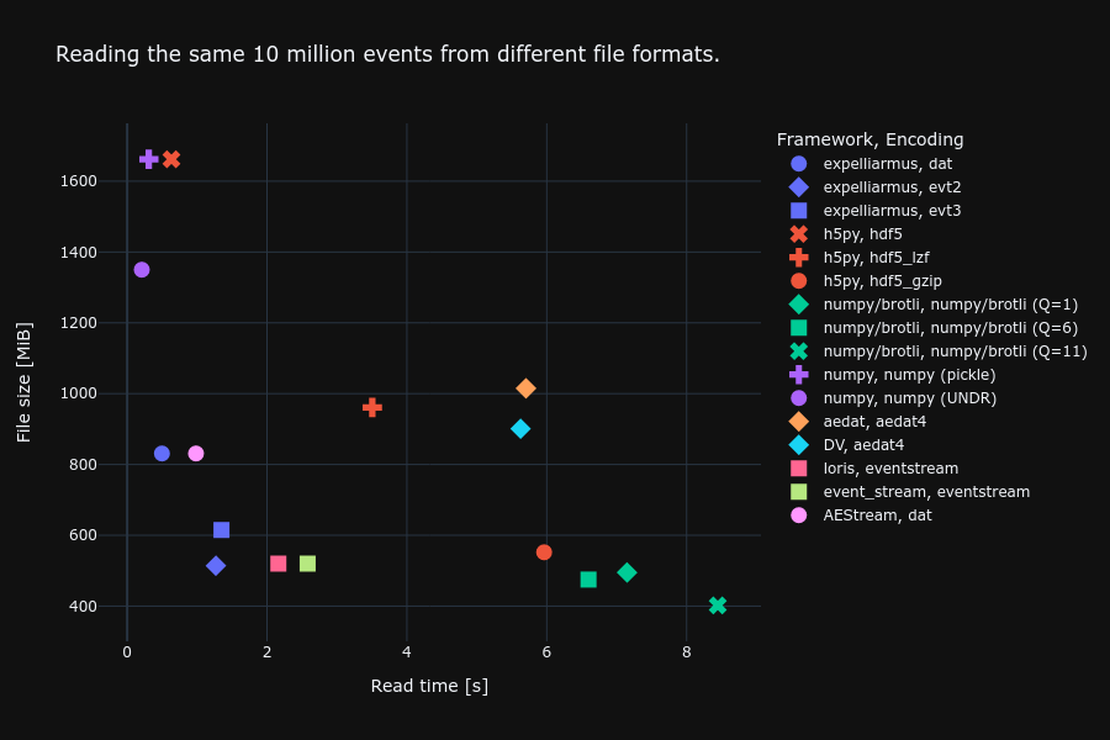

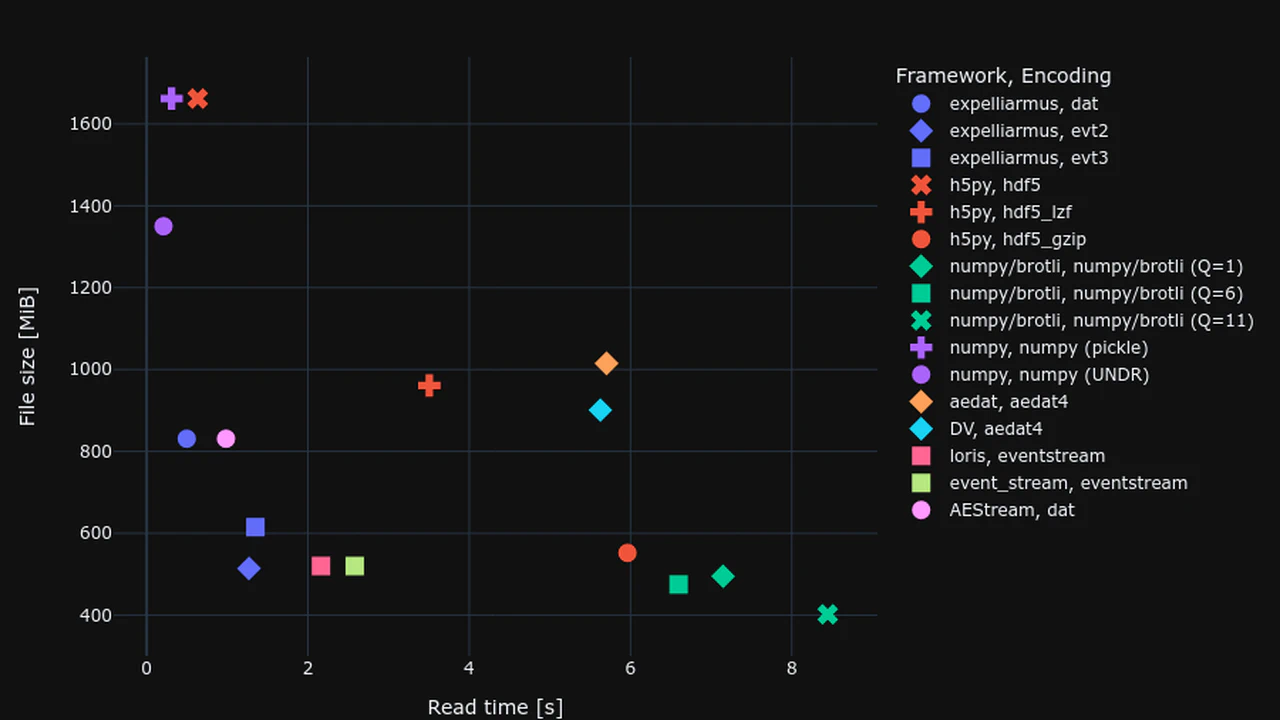

So how can we store such data efficiently? A straightforward idea is to resort to formats such as hdf5 and numpy and store the arrays of events directly. But without exploiting any structure in the recorded data, those uncompressed formats end up having the largest file footprint. For our example automotive dataset, this would result in some 7-8 TB of data, which is undesirable. Event camera manufacturers have come up with ways to encode event streams more efficiently. Not only are we concerned about the size of event files on disk, but we also want to be able to read them back to memory as fast as possible! In the following figure we plot the results of our benchmark of different file type encodings and software frameworks that can decode files.

Comparison of time taken for forward and backward passes in different frameworks, for 512 neurons.

Ideally, we want to be close to the origin where we read fast and compression is high. The file size depends on the encoding, whereas the reading speed depends on the particular implementation/framework of how files are read. In terms of file size, we can see that numpy doesn’t use any compression whatsoever, resulting in some 1.7GB file for our sample recording. Prophesee’s evt3 and the generic lossless brotli formats achieve the best compression. In terms of reading speed, numpy is the fastest as it doesn’t deal with any compression on disk. Unzipping the compressed events from disk on the other hand using h5py is by far the slowest. Using Expelliarmus and the evt2 file format, we get very close to numpy reading speeds while at the same time only using a fourth of the disk space. For more information about Prophesee event encoding formats, check out this blog post .

Capable frameworks

The authors of this post have released Expelliarmus as a lightweight, well-tested, pip-installable framework that can read and write different formats easily. If you’re working with dat, evt2 or evt3 formats, why not give it a try?

Summary

When training spiking neural networks on event-based data, we want to be able to feed new data to the network as fast as possible. But given the high data rate of an event camera, the amount of data quickly becomes an issue itself, especially for more complex tasks. So we want to choose a good trade-off between a dataset size that’s manageable and reading speed. We hope that this article will help future groups that record large-scale datasets to pick a good encoding format.

Authors

  • Gregor Lenz is a research engineer at SynSense, where he works on machine learning pipelines that can train and deploy robust models on neuromorphic hardware. He holds a PhD in neuromorphic engineering from Sorbonne University in Paris, France.
  • Fabrizio Ottati is a Ph.D. student in the HLS Laboratory of the Department of Electronics and Communications, Politecnico di Torino. His main interests are event-based cameras, digital hardware design and neuromorphic computing. He is one of the maintainers of two open source projects in the field of neuromorphic computing, Tonic and Expelliarmus , and one of the founders of Open Neuromorphic .
  • Alexandre Marcireau .

Comments

The aedat4 file contains IMU events as well as change detection events, which increases the file size artificially in contrast to the other benchmarked formats.
